EL008

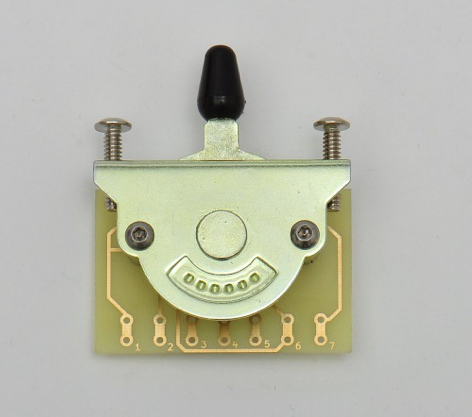

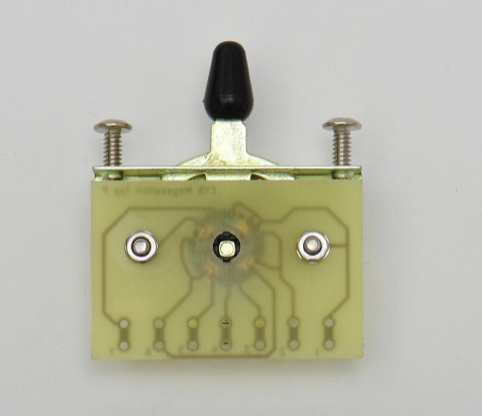

Sophisticated 5-way switch for two humbuckers, which allows the typical switching of early PRS guitars. Although many guitarists liked the sounds that the PRS’s 5-way rotary switch produced, they couldn’t get used to its confusing rotary function. The Eyb Megaswitch provides the same sounds, but with a much more convenient F-type blade switch.
Incl. black button and wiring diagram.

Dimensions: 48 x 35 x 12mm (L x D x W)

The five switching positions:

• Neck humbucker solo
• Inner coils of both humbuckers parallel
• Inner coils of both humbuckers serially
• Outer coils of humbuckers parallel
• Bridge humbucker solo
