CTS500P

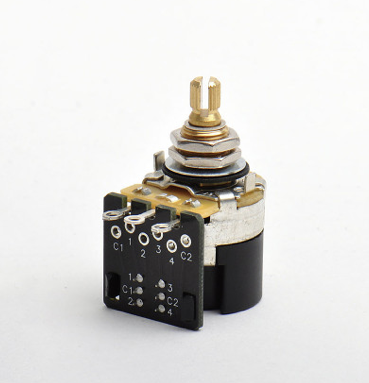

CTS push-pull pots are characterized by a smaller installation depth and a more stable axis compared to conventional push-pull pots. The circuit board also makes it easier to solder the switching contacts.

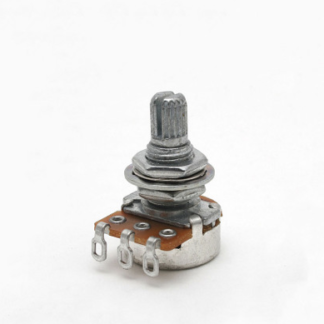

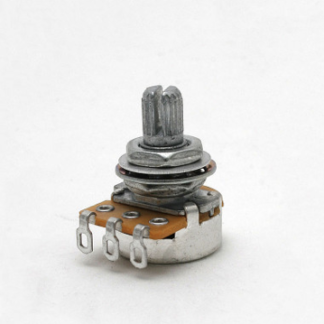

Three different versions are available: 250kOhm A, 500kOhm A, and the long version of the 500kOhm A-type.

Thread: 9,35 x 9,35mmØ (= 3/8″ x 3/8″)

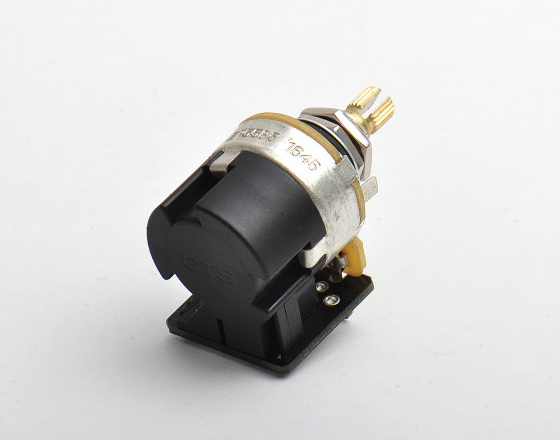

Thread long version: 18.7 x 9.35mmØ (= 3/4″ x 3/8″)
Housing: 24mmØ
Installation depth: approx. 25mm
slotted ripple shaft
