THE COMPLETE SOLUTION FOR SINGING GUITARISTS

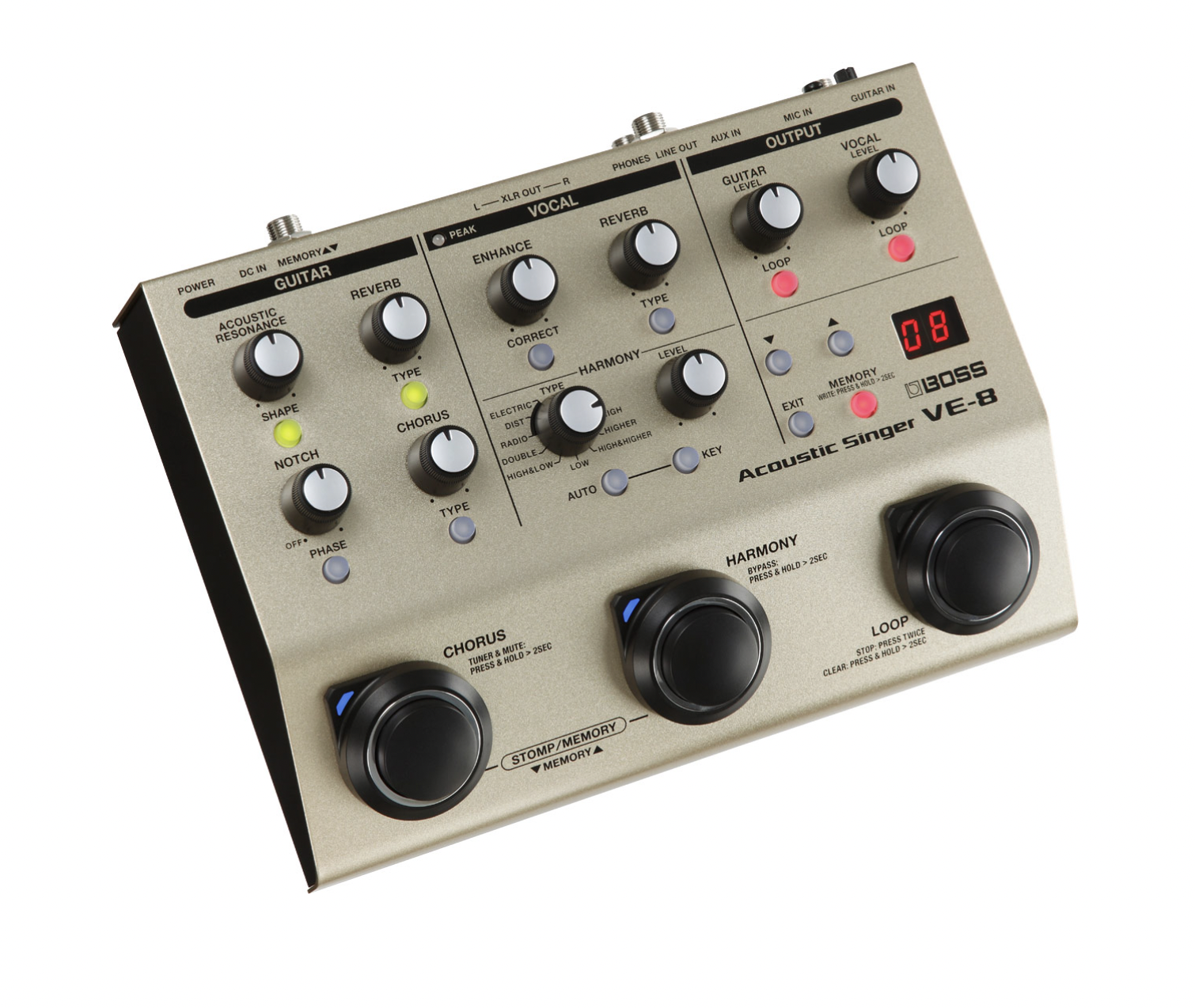

Her er instrumentet til dig, som er sanger, songwriter og spiller akustisk guitar og der gerne vil give sin musik ekstra opmærksom i den konkurrenceprægede musikbranche. VE-8 Acoustic Singer får din musik til at skille sig ud fra andres musik, og instrumentet giver lyden en ekstra kant, samt understøtter dig spil med den professionelle BOSS-lyd. VE-8 er enkelt at betjene, og det giver lyden af din stemme og dit guitarspil studiekvalitet. Instrumentet kan medbringes overalt, og du kan tilføje imponerede real-time harmonier, der kan loopes. Dine koncerter vil lægge et hvert spillested ned, når du spiller med VE-8’s fantastiske lyd og dets mange kraftfulde kreative funktioner, som du kan styre.

SPECIFICATIONSNominal Input LevelMIC IN: -40 dBu (MIC SENS = Center)
GUITAR IN: -10 dBu
AUX IN: -20 dBuInput ImpedanceMIC IN: 4 k ohms
GUITAR IN: 20 M ohms
AUX IN: 18 k ohmsNominal Output LevelLINE OUT L/MONO, R: -10 dBu
XLR OUT L, R: -10 dBu (Vocal&Guitar, Guitar), -40 dBu (Vocal)Output ImpedanceLINE OUT L/MONO, R: 1 k ohm
XLR OUT L, R: 600 ohms
PHONES: 44 ohmsModeManual
Memory (Memory change/stomp)Number of Memory50Effects[Vocal part]
ENHANCE
PITCH CORRECT
HARMONY/FX: HIGH, HIGHER, HIGH&HIGHER, LOW, HIGH&LOW, DOUBLE, RADIO, DIST, ELECTRIC
REVERB
3 BAND EQ, LOW CUT
[Guitar part]
ACOUSTIC RESONANCE
CHORUS/FX: CHORUS, TREMOLO, PHASER, DELAY, MOD DELAY, OCTAVE, SLOW GEAR, RING MOD
REVERB
3 BAND EQ, LOW CUT

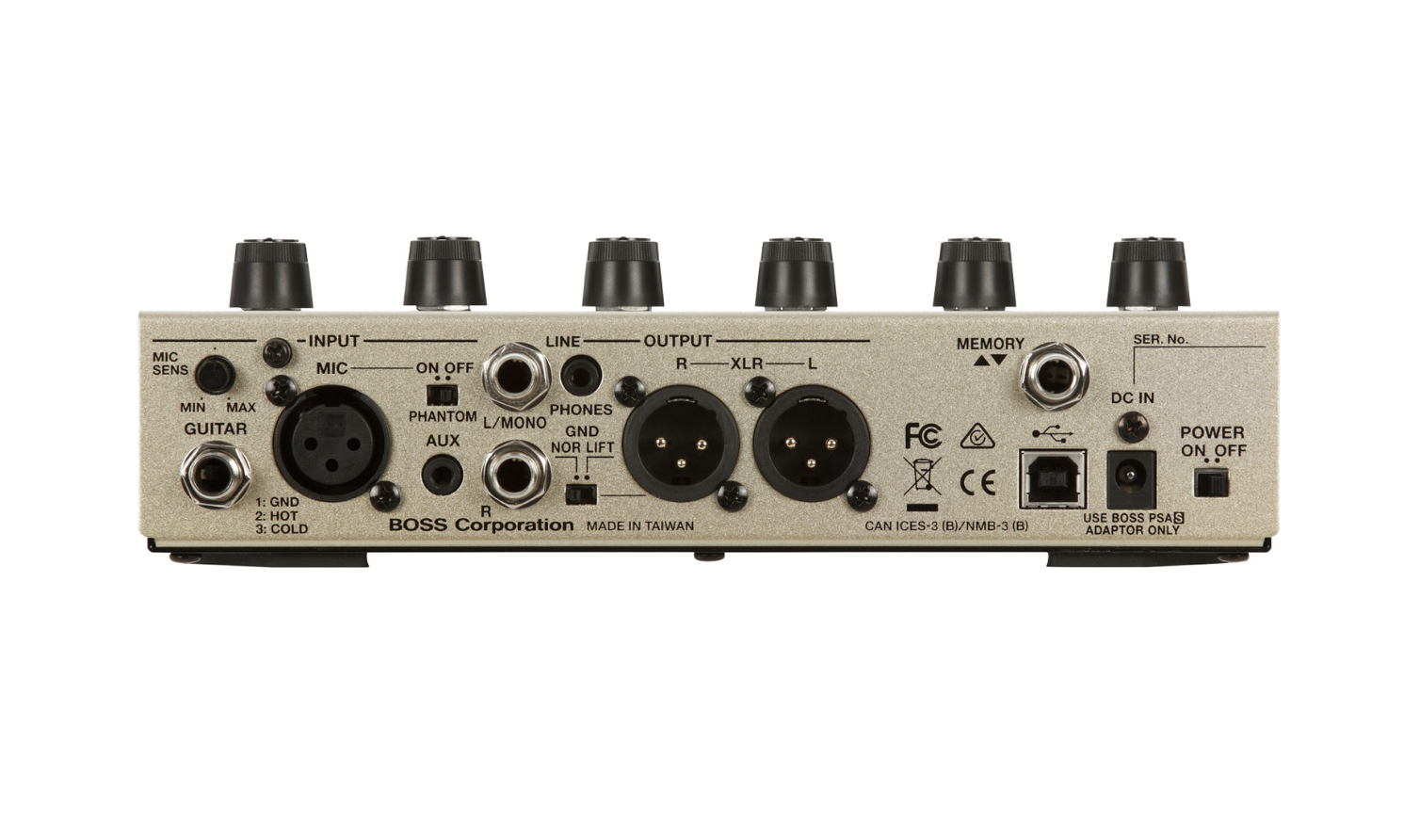

NOTCH FILTER, PHASEPhrase Loop80 secDisplay7 segments, 2 digits LEDConnectorsMIC IN connector: XLR type, balanced, phantom power (DC 48 V, 10 mA Max)
GUITAR IN jack: 1/4-inch phone type
AUX IN jack: Stereo miniature phone type
XLR OUT L, R connectors: XLR type
LINE OUT L/MONO, R jacks: 1/4-inch phone type
PHONES jack: Stereo miniature phone type
MEMORY INC/DEC jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B
DC IN jackPower SupplyAC adaptor
Alkaline battery (AA, LR6) x 6Current Draw360 mAExpected battery life under continuous useAlkaline battery: Approx. 4.5 hours (phantom power: OFF), Approx. 2.5 hours (phantom power: ON)
*These figures will vary depending on the actual conditions of use.AccessoriesOwner’s manual
Leaflet “USING THE UNIT SAFELY”
AC adaptorOptions (sold separately)Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7SIZE AND WEIGHTWidth217 mm
8-9/16 inchesDepth161 mm
6-3/8 inchesHeight65 mm
2-9/16 inchesWeight (including battery)1.3 kg
2 lbs 14 oz* 0 dBu = 0.775 Vrms
